Orion 600 Aviation Anti Collision Lights

Whelen Orion 600 Aviation Anti Collision Lights

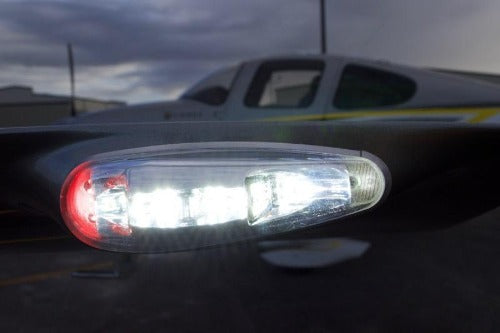

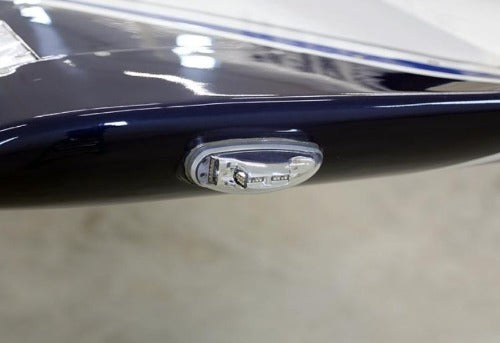

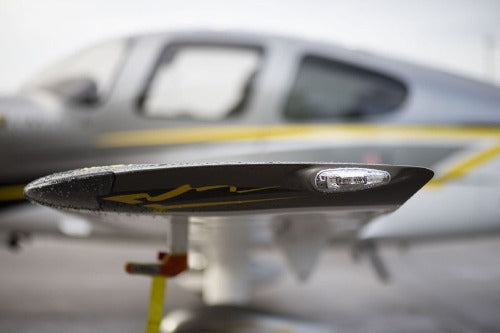

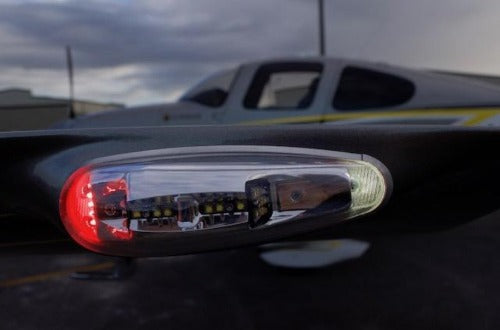

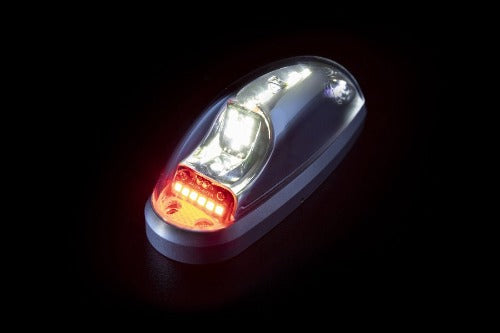

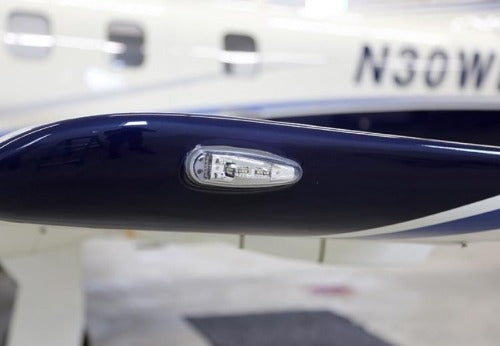

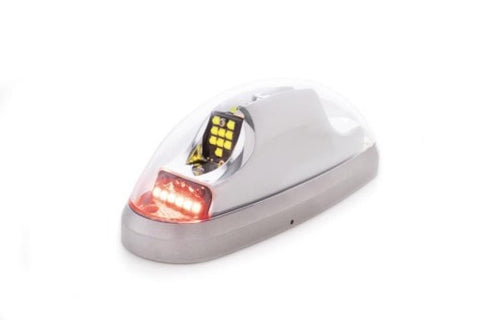

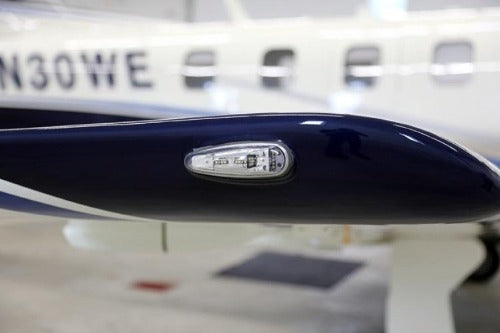

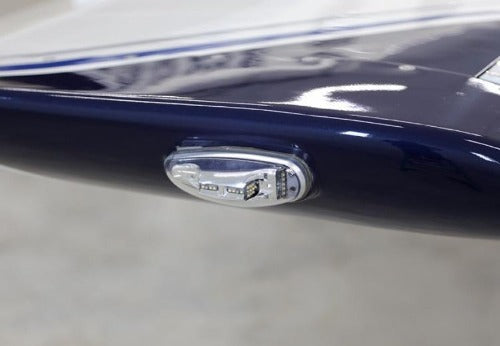

Whelen Engineering is proud to introduce the NEW ORION600 Series of FAA/TSO approved LED aviation lighting. Incorporating the latest state-of-the-art LED Technology available in an all-inclusive package, the ORION600 series eliminates the need for external flasher boxes. Flush mountable for a wide variety of applications with minimal integration and easily retrofittable to the Whelen legacy strobe products. The ORION600 series is quite simply the brightest form of LED Anti-collision and Position lighting available.

Whelen Orion 600 LED Information

• Drawing # 71733
• Weight 0.5 lbs.
• Dimensions H x W x L 2.04 (52mm) x 1.78 (45mm) x 5.65 (144mm)
• Current Draw 14V / 28V 0.48 / 0.17 Amps Position 1.0 / 0.5 Amps Avg. ACL

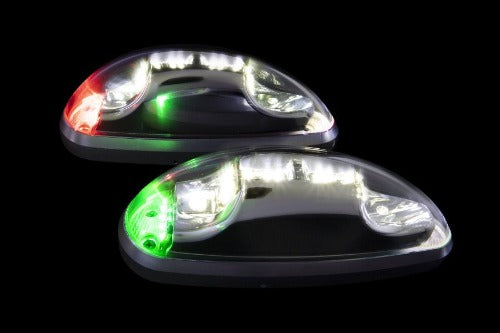

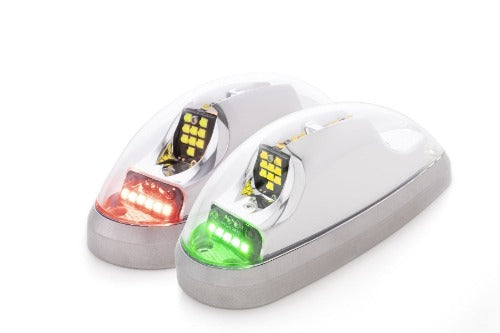

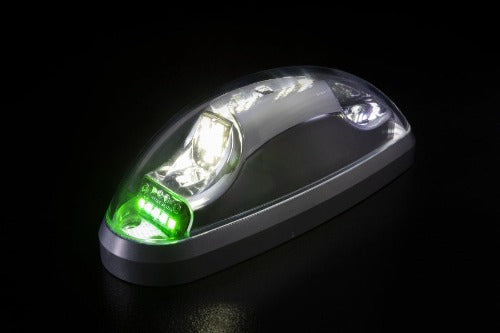

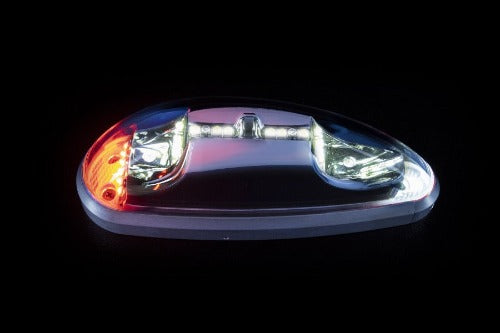

• Position Led Colors Aviation Red, Aviation Green, Aviation White
• Anti-Collision LED color Aviation White
• Lenses Clear Polycarbonate Hard-coated, Field Replaceable

Whelen Orion 600 Voltage Options

P46P1L - 01-0790750-10 - PAR46 LED Landing Light 14V

P46P2L - 01-0790750-20 - PAR46 LED Landing light 28V

Whelen Orion 600 LED
