ASPEN AVIONICS
Evolution 2500 Package
Part No: EVOLUTION 2500 PACKAGE
Call for price
Shipping calculated at checkout.
DESCRIPTION

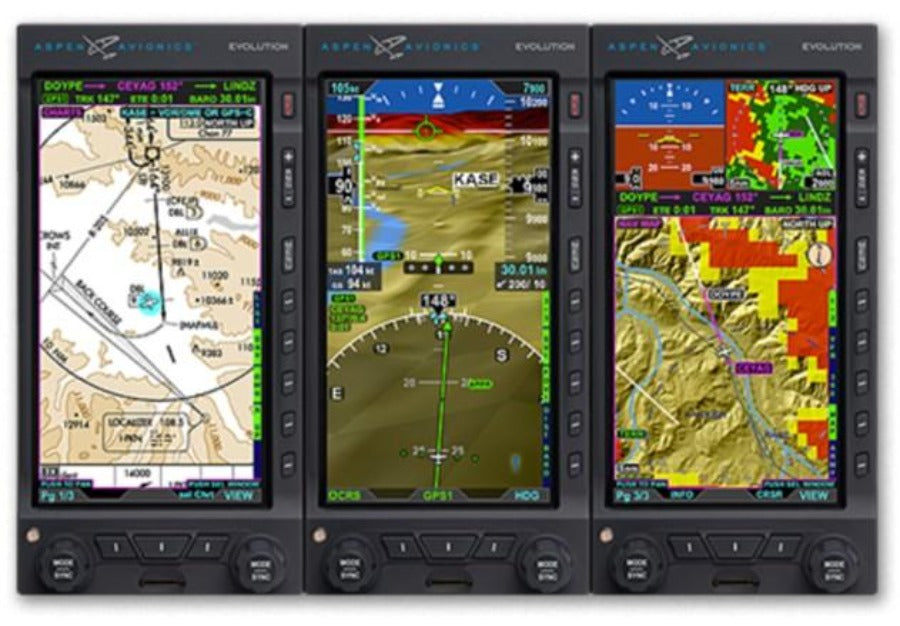

Evolution 2500 Package
**From $29,150 installed. This unit must be installed by Pacific Coast Avionics.
The Evolution 2500 Package combines the powerful, award-winning Evolution™ 1000 Pro PFD (Primary Flight Display), the 1000 MFD (Multifunction Flight Display), and the 500 MFD to deliver Aspen’s total glass cockpit solution. The 1000 Pro PFD and 1000 MFD provide the safety and confidence of DuoSafe™ PFD redundancy. The 500 MFD expands display area to put more flight data where you want it — the way you want it. Aspen makes the total glass cockpit experience for GA aircraft both easy-to-use and affordable with patent-pending retrofit technology and superior compatibility for substantially lower installation costs and total cost of ownership.

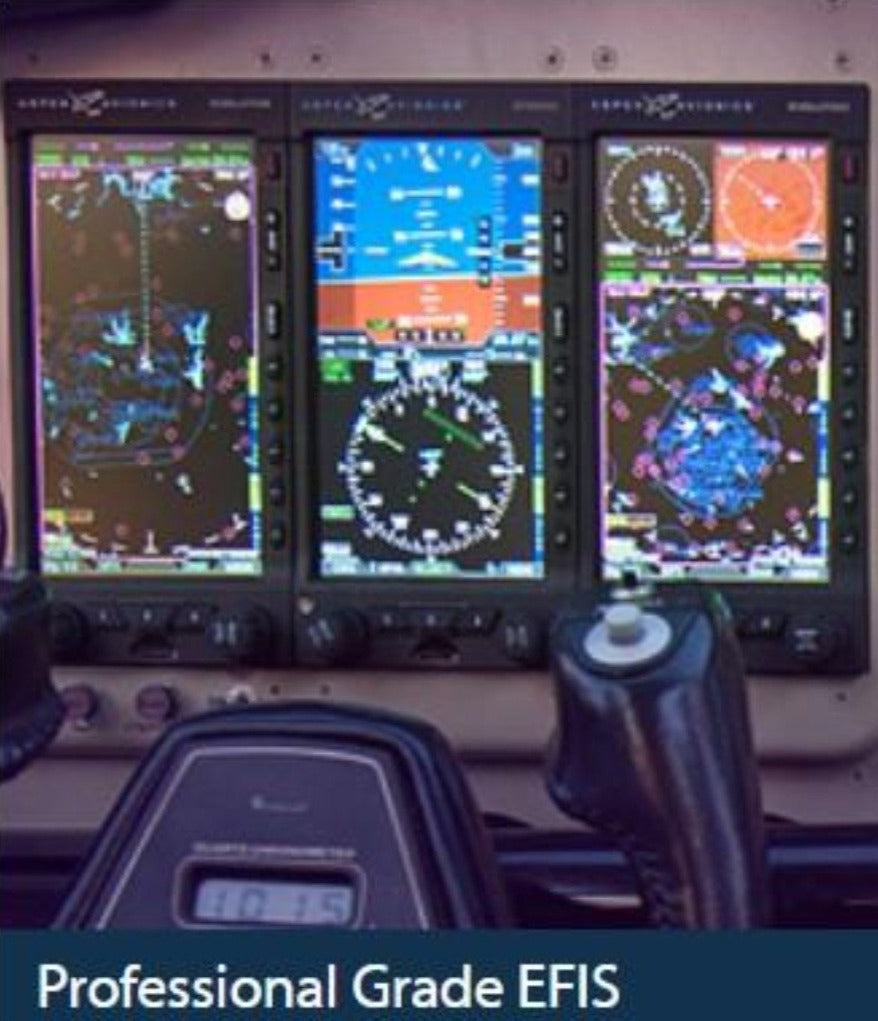

The 1000 Pro PFD provides professional-grade EFIS primary flight instruments, a full-featured electronic HSI, and moving maps. The 1000 MFD doubles your panel’s display area and delivers full redundancy of critical systems and sensors. The 500 MFD rounds out the package to deliver the largest display area and most flexible glass panel on the market.

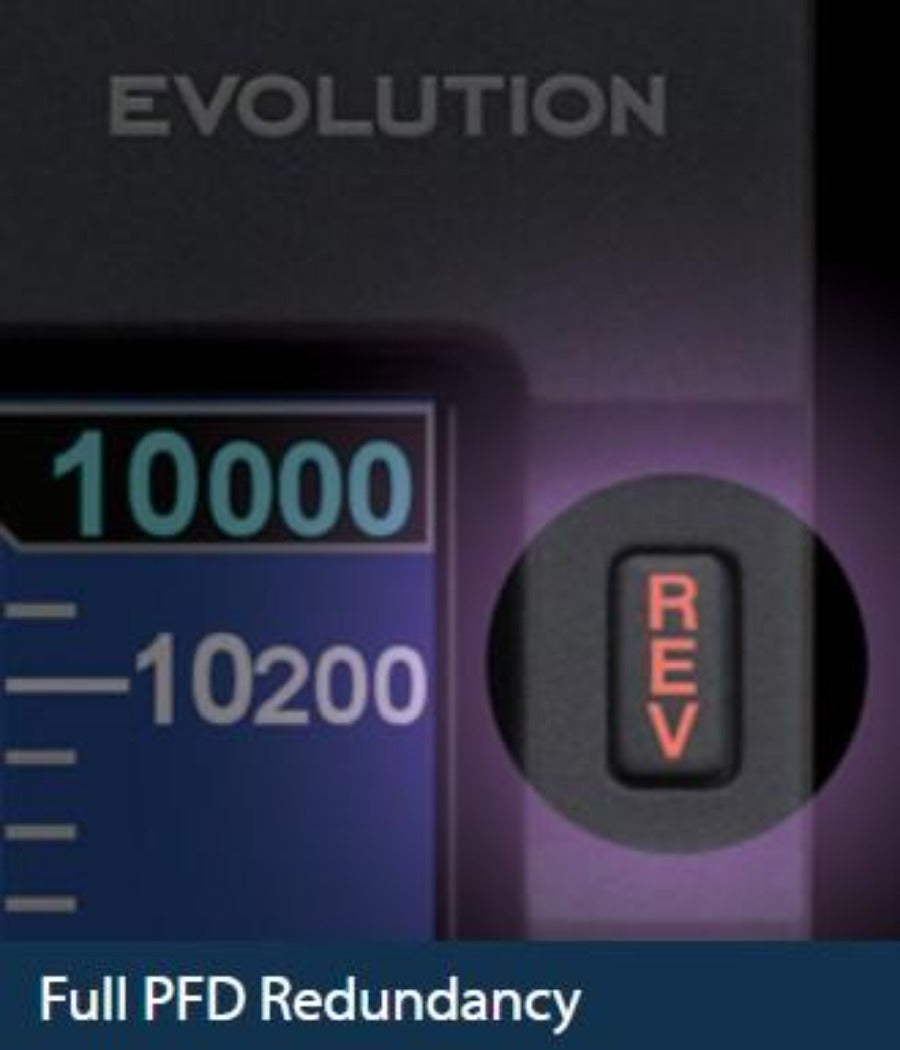

The 1000 MFD incorporates the exact same hardware and software as the PFD, so these units give you two of everything, not just two displays: dual independent AHRS, Air Data Computers, compass systems, HSIs, and more. With Aspen’s exclusive DuoSafe PFD redundancy, if your PFD fails you simply press the 1000 MFD’s REV button and it becomes the PFD — converting into an identical backup right in your primary instrument scan. This identical PFD backup means less stress and potential confusion in a pressure situation. No other GA glass cockpit system gives you this level of redundancy and confidence at any price!
The Evolution 2500 Package delivers value pricing compared to installing the 1000 Pro PFD, 1000 MFD, and 500 MFD separately. Evolution Flight Displays are fully upgradable, so you can add comprehensive hazard awareness capabilities and other new features via software upgrades, without removing displays from your panel.
Evolution 2500 Package — your ultimate glass panel.
Safer by Design
The Evolution™ 2000 MAX combines the powerful, award-winning Pro MAX Primary Flight Display (PFD) and the MFD1000 MAX Multi-function Display (MFD) to provide a system with MFD versatility and twice the safety and redundancy.
Evolution 2000 MAX
MFD Versatility With Full PFD Backup
Clean up your panel and remove vacuum system and backups.
The Evolution™ 2000 MAX combines the powerful, award-winning Pro MAX Primary Flight Display (PFD) and the MFD1000 MAX Multi-function Display (MFD) to provide a system with MFD versatility and twice the safety and redundancy.
The Pro MAX PFD and MFD1000 MAX provide the safety and confidence of PFD redundancy. If your PFD fails, simply press the REV button on the 1000 MFD and it becomes the PFD – converting into an identical backup right in your primary instrument scan. This PFD backup means less stress and potential confusion in a pressure situation. No other GA glass cockpit system gives you this level of redundancy and confidence at any price.
Aspen makes the total glass cockpit experience both easy-to-use and affordable with patented retrofit technology and superior compatibility for substantially lower installation costs and total cost of ownership.
Evolution 2000 MAX – exceptional versatility, unmatched redundancy.
Five reasons why MAX is the best buy:
-
Reduces cockpit clutter
-
Evolution 2000 system with extended duration internal battery allows removal of your backups along with vacuum system
-
Vibrant aviation glass with the latest generation of processors
-
Simple and affordable MAX upgrade path for legacy Aspen displays
-
New-two year manufacturer's warranty
For Aspen customers old and new, your investment retains it value and never be obsolete.
Features
Evolution 2500 MAX System Features:
Advanced EFIS six-pack replacement
Pro MAX PFD/MFD1000 MAX redundancy backs up all critical sensors and systems
Twice the MFD display area for enhanced situational awareness
Built-in internal extended duration battery and emergency GPS
New, vibrant colors with the latest aviation glass
Higher reliability and faster refresh rates with the latest generation processors
Brilliant, direct sunlight-readable, 6-inch 760x400 TFT active matrix LCD display capable of displaying over million colors (140 pixels/inch)
Photo-quality moving maps and crisp, clear text
Terrain, traffic, maps and weather
ADS-B In weather and traffic1
Audio panel interface
Fully expandable and software upgradable – when new technology becomes available no need for unit replacement

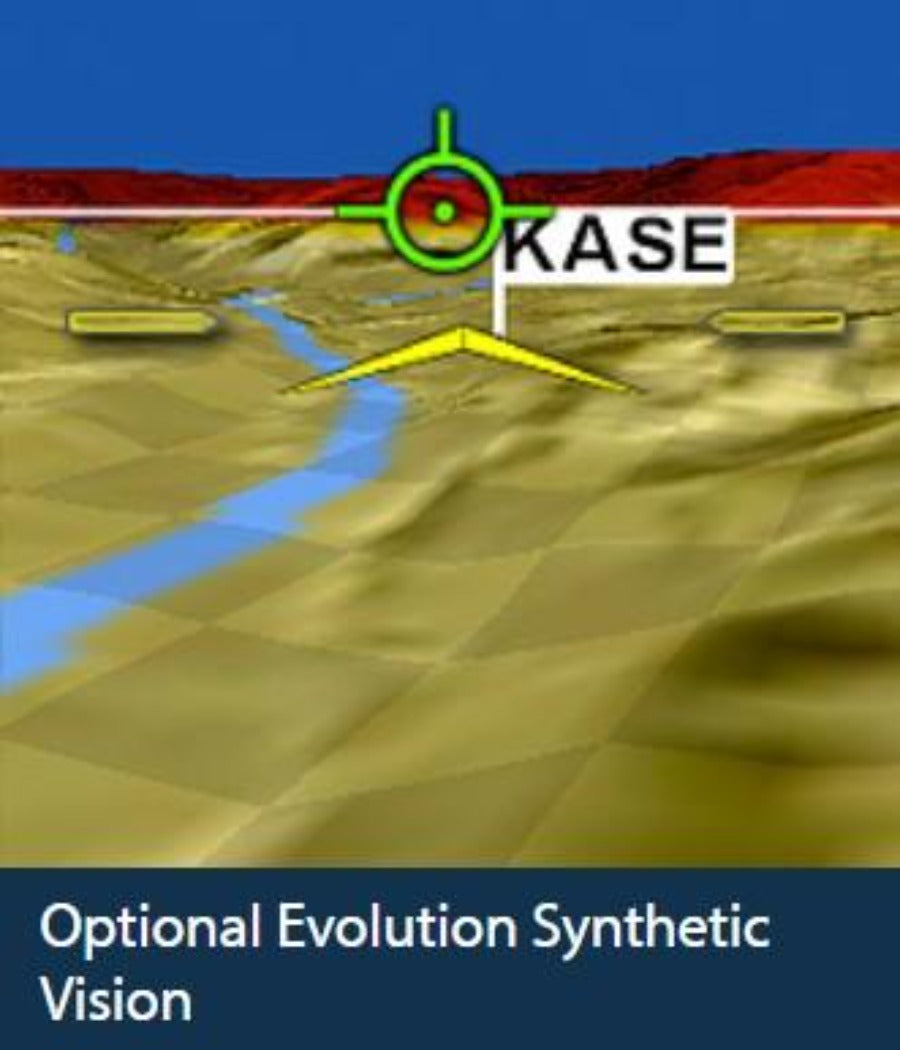

Standard Evolution Synthetic Vision
Optional Angle of Attack
Works with your existing avionics with the broadest autopilot/flight director integration
Lightest weight with easy system installation
Award-winning customer service
No-nonsense warranty
1 with compatible ADS-B transceiver, receiver or transponder
Pro MAX PFD Features:
GPS-aided AHRS in the event of pitot static failure
Font and window enlargement capable
Airspeed and altitude tapes
Altitude alerter (and separate approach minimums alerting)
Full electronic HSI with dual bearing pointers
Base map with flight plan legs and waypoints, curved flight paths,1 and nearby navaids
Built-in GPS steering1
Display of real-time winds aloft, OAT, TAS, and ground speed1
Integral Air Data Computer and Attitude Heading Reference System (AHRS)
MFD1000 MAX Features:
Duplicate sensor set providing PFD redundancy on MFD if PFD fails
Allows removal of redundant mechanical backup instruments
Secondary HSI
Chart and countdown timers
Height above ground level (AGL) on navigation and terrain maps
METAR flags on navigation map
High resolution moving maps with hazard display overlays
ADS-B traffic and weather 2
Customizable screen layouts
Font enlargement
Charts and geo-referenced airport diagrams
MFD1000 MAX Features:
Duplicate sensor set providing PFD redundancy on MFD if PFD fails
Allows removal of redundant mechanical backup instruments
Secondary HSI
Chart and countdown timers
Height above ground level (AGL) on navigation and terrain maps
METAR flags on navigation map
High resolution moving maps with hazard display overlays
ADS-B traffic and weather 2
Customizable screen layouts
Font enlargement
Charts and geo-referenced airport diagrams
Specifications
General Specifications (per EFD):
Overall Dimensions 3.50” W x 7.00”H x 4.15”D
Weight 2.9 lbs. with mounting bracket
Display Type 6.0” Diagonal TFT Active Matrix LCD
Display Resolution 400x760
Display Backlight High Intensity White LED
Display Colors 30 Millon Colors(140 pixel/inch)
Operational Specifications:
Operating Temp -20°C to +55°C
Storage Temp -55°C to +85°C
Max Operating Altitude (unpress.) 35,000 ft.
Cooling Integral Fan
Max Humidity 95% at 50°C
Input Voltage +8 to +32 Volts DC
Max Current 2.4 Amps @ 28 Vdc / 4.8 Amps @ 14 Vdc
I/O Specifications:
ARINC 429 Inputs 5 Low Speed
ARINC 429 Outputs 1 Low Speed
RS-232 Inputs 5
RS-232 Outputs 3
Pitot / Static Quick Connect
Certification Specifications:
Software
RTCA DO-178B Level C
Environmental
RTCA DO-160E
