COMANT
DESCRIPTION

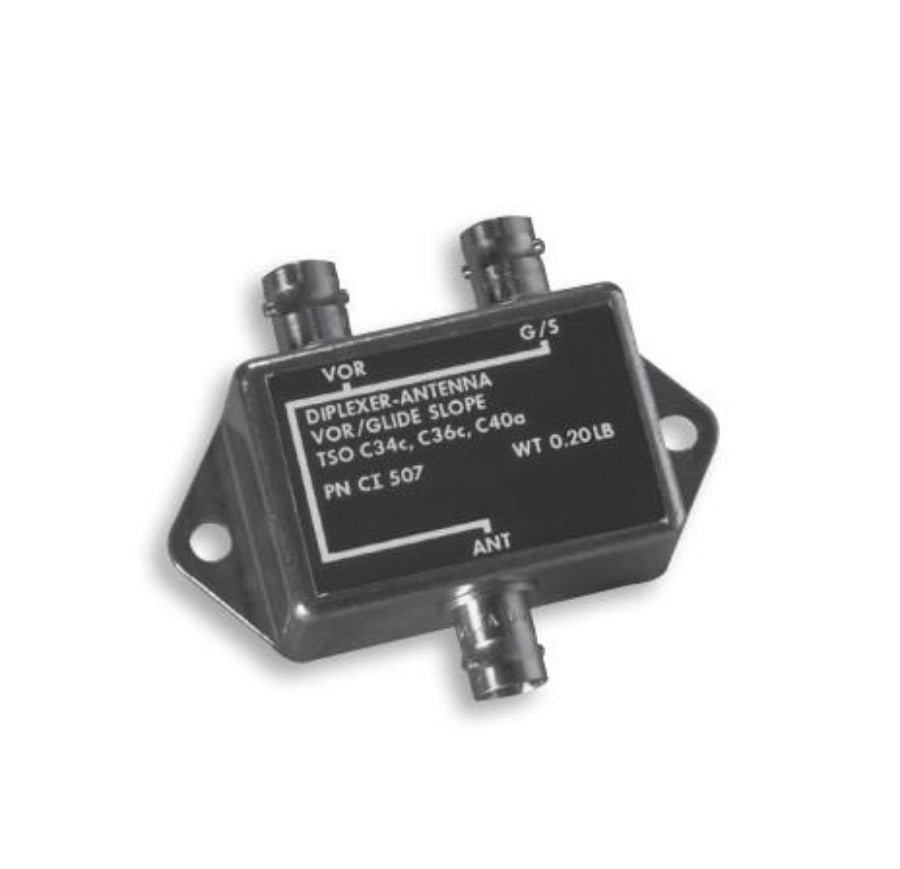

Comant CI 507 Diplexer VOR G/S
Allows the operation of one VOR receiver and one glide slope receiver from one VOR/GS antenna. Compact design makes installation easy. Order CI 507-2 for TNC Female connectors on all ports.
Applications
Internal mounting location.
Frequencies Covered
108-118 MHz 329-335 MHz
Specifications
Electrical :
| FREQUENCY | 108 - 118 and 329 - 335 MHz |
| VSWR | 1.5:1 Maximum |
| INSERTION LOSS | 0.5 dB Maximum |
| ISOLATION | 20 dB Minimum |
| IMPEDANCE RF | 50 Ohms |
Mechanical :
| WEIGHT | 0.20 lb. Maximum |
| HEIGHT | 0.88 in. Maximum |
| MATERIAL | Die Cast Aluminium |
| FINISH | Aluminium |
| CONNECTOR | BNC (female) |
Environmental :
| MOUNT | Internal |
Federal Specifications :
| FAA TSO | C34c, C36c, C40a |
