COMANT
DESCRIPTION

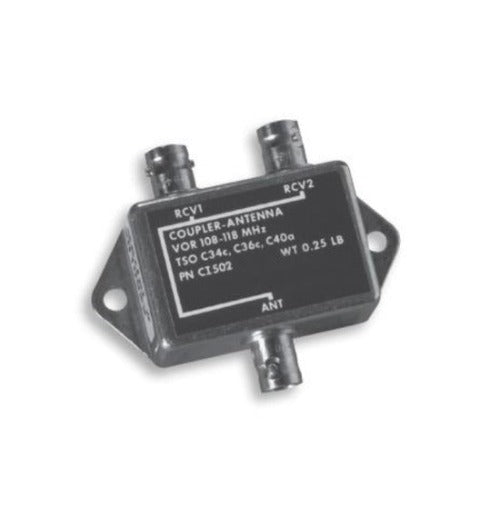

Comant CI 502 Coupler
Frequency 108-118 MHz
Dual VOR coupler allows the simultaneous use of two VOR receivers from one VOR antenna. Compact design makes for easy installation.
Applications Internal mounting location.
Frequencies Covered 108-118 MHz
Specifications
Specifications
|
MODEL CI 502 COUPLER VOR |
|
|
Electrical |
|
|
Frequency |
108-118 MHz |
|
VSWR |
1.5:1 Maximum |
|
Insertion Loss |
0.5 dB Maximum |
|
Isolation |
20 dB Minimum |
|
Impedance RF |
50 Ohms |
|
Mechanical |
|
|
Weight |
0.25 lb. Maximum |
|
Height |
0.88 in. Maximum |
|
Finish |
Aluminum |
|
Material |
Die Cast Aluminum |
|
Connector |
BNC (Female) |
|
Environmental |
|
|
Internal Mounting |
|
|
Federal Specifications |
|
|
FAA TSO |
C34c, C36c, C40c |
