COMANT
DESCRIPTION

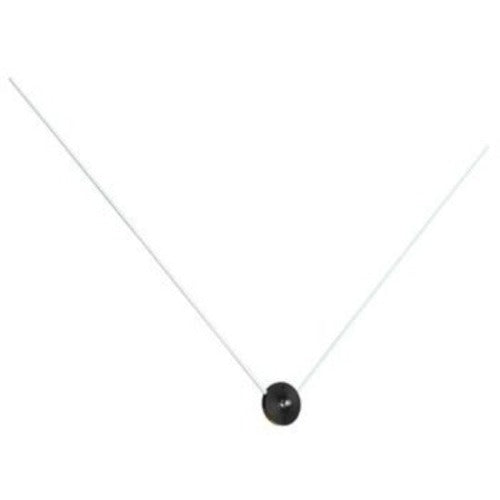

Comant CI 159C VOR/LOC/GS
“V” Dipole VOR/LOC/GS antenna with detachable elements mounts on top of vertical stabilizer for most single engine general aviation aircraft. Integral ferrite balun provides for higher radiation efficiency. Detachable elements result in a significantly smaller shipping and storage carton than fixed element versions. Fiberglass whips with 2-hole mounting configuration.
Features
- Rated to 250 kts
- Impedance: 50 ohms
- Freq: 108-118MHz 329-335 MHz
- VSWR: 3.0:1 max
- Weight: 0.35 lbs.
Specifications
| FREQUENCY | 108 - 118 MHz (VOR / LOC) 329 - 335 MHz (Glide Slope) |
| VSWR | 6.0:1 108 - 118 MHz (VOR / LOC) 2.5:1 329 - 335 MHz (Glide Slope) |
| POLARIZATION | Horizontal |
| RADIATION PATTERN | Dipole |
| IMPEDANCE | 50 Ohms Nominal |
| POWER | Receive Only |
Mechanical :
| WEIGHT | 0.35 lb. Maximum |
| HEIGHT | 16.00 in. Maximum |
| MATERIAL | Delrin housing / Glass laminate whips / SS radiators |
| FINISH | Black housing / White Polyurethane enamel over P-Stat paint |
| CONNECTOR | BNC |
Environmental :
| TEMPERATURE | -55°C to +85°C |
| ALTITUDE | 50,000 ft. |
| AIR SPEED | 250 Knots TAS @ 25,000 ft. |
Federal Specifications :
| RTCA ENVIRONMENTAL | DO-160 |
| ENVIRONMENTAL CATEGORY | B2ALXXXXXXXXXXX |
| FAA TSO | C34c, C38c, C40c |
| RTCA MOPS | DO-192, DO-195, DO-196 |
