COMANT
DESCRIPTION

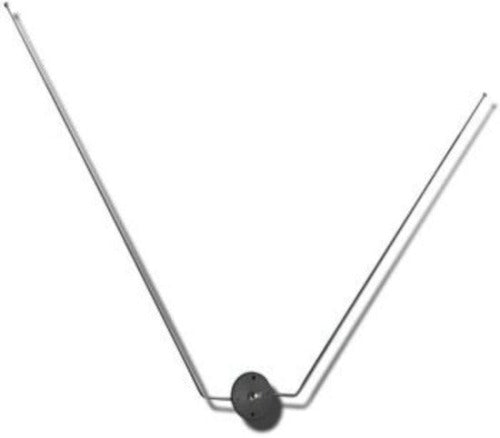

Comant CI 157P VOR/LOC/GS
“V” Dipole VOR/LOC/GS antenna with fixed elements designed specifically for compatibility with the Piper Aircraft mounting. Integral ferrite balun provides for higher radiation efficiency replacing cumbersome coaxial baluns previously utilized. Radiating elements are not removable.
Note: Comant Antennas no longer come with a gasket or a template. Must order PN 09-05579 separately.
Not approved for helicopter installations.
Applications
Single engine piston aircraft for applications of this antenna design. Consult your FBO or installation shop for best application information.
Frequency 108-118 MHz (VOR/LOC) 329-335 MHz (Glide Slope)
Specifications
|
MODEL CI 157P V-DIPOLE |
|
|
Electrical |
|
|
Frequency |
108-118 MHz (VOR / LOC) |
|
VSWR |
3.0:1 108-118 MHz (VOR / LOC) |
|
Polarization |
Horizontal |
|
Radiation Pattern |
Dipole |
|
Impedance |
50 Ohms Nominal |
|
Power |
Receive Only |
|
Mechanical |
|
|
Weight |
0.5 lb Maximum |
|
Height |
18.00 in. Maximum |
|
Material |
Derlin Housing / Stainless Whips |
|
Finish |
Black Housing / Stainless Whips |
|
Connector |
BNC |
|
Environmental |
|
|
Temperature |
330 KIAS Maximum @ Sea Level |
|
Altitude |
4.2 Oz. Maximum |
|
Air Speed |
DO-160D |
|
Federal Specifications |
|
|
RTCA Environmental |
DO-160C |
|
FAA TSO |
C34c, C38c, C40c |
|
FAA MOPS |
DO-192, DO-195, DO-196 |
Dimensions
