MID-CONTINENT INSTRUMENTS AND AVIONICS
DESCRIPTION

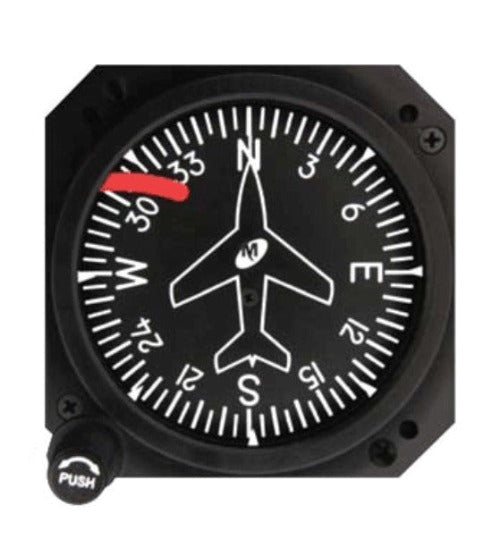

Advanced circuitry and improved design allow this directional gyro to withstand high vibration and require less than half the power of standard DGs. Lightweight (1.8 lbs.) and reliable, it utilizes long-life LEDs for a crisp, legible backlit display. With 10–32 volt DC input, it will work in any aircraft. Exceptional RTCA DO-160E HIRF immunity makes this an ideal replacement for heavy, older AIM and RC Allen units.
- Custom versions available to match existing instrument/EFIS displays
-
Optional self-contained battery backup (Provides up to one hour of emergency attitude reference in the event of aircraft power failure)
- Built-in annunciation
- Internal emergency lighting
- Single connector installation for primary and optional standby battery models
- Exceptional value - 7,500 hrs. MTBF, more than double the life of most electric gyros
- Perfect for use as a primary or standby artificial horizon in fixed-wing aircraft and helicopters
- 10-32 volt DC replacement for use in either 14 or 28 volt aircraft
- Anti-reflective glass enhances visibility and reduces fatigue
- Field replaceable lighting
- Approved to FAA TS)-C4c
- One-year limited liability
Specifications
Specifications:
| MTBF: | 7,500 Hours High-stability tungsten rotor operates at lower rotational speed, extending bearing life |
| Certification: | FAA TSO-C4c |
| Power Input: |
28 VDC version: 560 mA start, 250 mA max. running
|
| Battery: | Rechargeable, custom lead-acid cell array Life = 3 years in average arcraft environment Runtime = 60 minutes minimum, when fully charged |
| Annunciators: | Push to engage annunciator:
|
| Lighting: | 5, 14, or 28 VDC; fuield replaceable tray wired through main connector |
| Glass: | Special HEA anti-reflective coating |
| Weight: | 2.7 lbs. or 3.7 lbs. with battery option |
| Length: | 6.6 inches maximum, 8.6 inches with battery option |
| Mounting: | Rear mount standard 3-1/8" round panel cutout |
| Temperature Range: | -30°C to +50°C, -22°F to +122°F |
Options: (please specify)
| Power Output: | 28 VDC fixed or 10 to 32 VDC |
| Lighting: | 5, 14 or 28 VDC |
| Lighting Color: | White, Blue/White or Red |
| Panel Tilt: | 0° to 20° |
| Dial: | Fixed or rotating roll dial configurations, traditional or delta wing airplane |
| Knob Cover: | Restricts reference airplane adjustment |
| Emergency Battery: | One hour run time; automatic charging system. Remote mountable |
| Inclinometer: | Front-mounted, ball-type slip indicator |
| Mounting: | Front mount available with ARINC style adapter plate |
