AVIDYNE

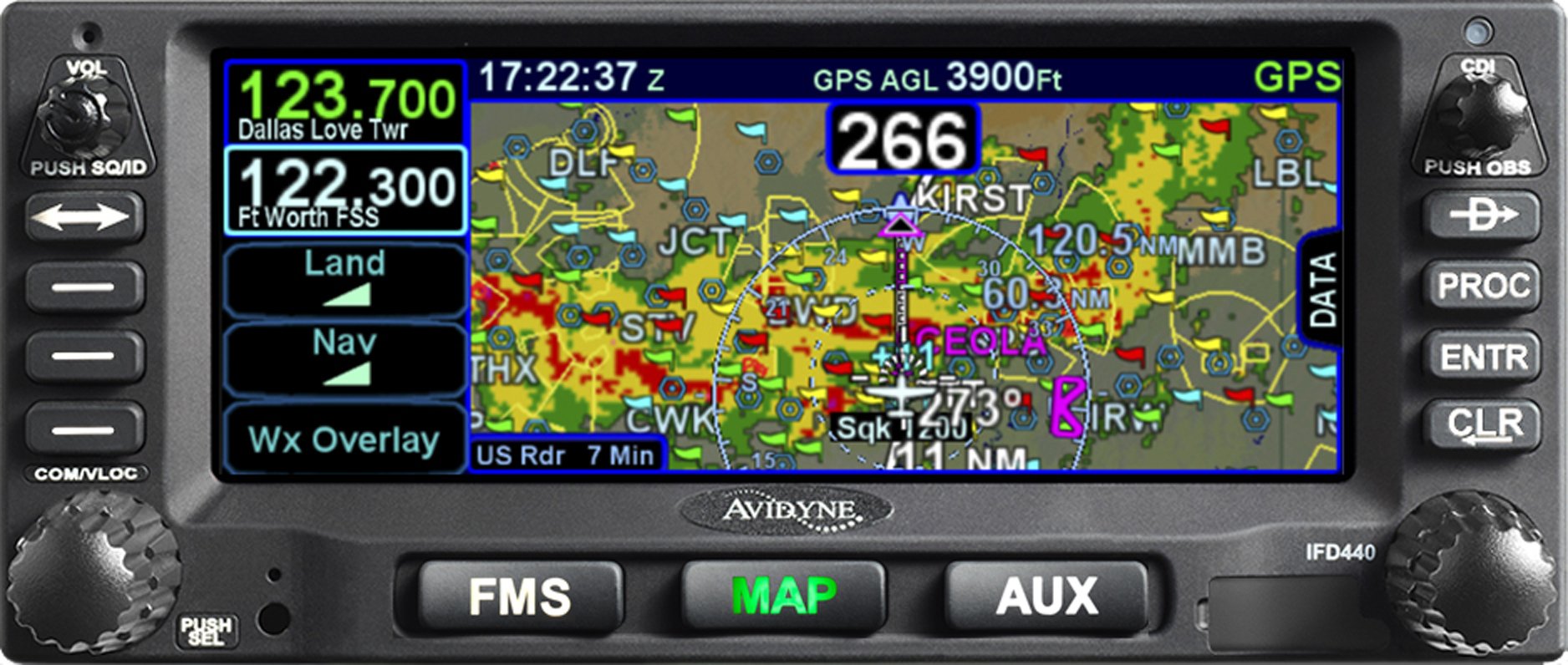

IFD440 Touch Screen FMS/GPS/NAV/COM
Part No: 850-00179-000
$14,395.00
/
Shipping calculated at checkout.
DESCRIPTION
IFD440 Touch Screen FMS/GPS/NAV/COM
Avidyne's IFD440 FMS/GPS/NAV/COM combines the best Flight Management System available, with a multi-channel digital VHF radio, in an easy-to-use, plug & play design. Easy-to-use touchscreen interface with knobs and buttons including WiFi/Bluetooth® capabilities.
Plug & Play Replacements
The IFD440 is a physical plug & play replacements for the Garmin GNS430 and GNS430W, using the existing tray and connectors. They are compatible with all the popular interface configurations, which can greatly minimize installation costs.
The Easy Choice
The IFD440 represents the next generation in FMS/GPS/ NAV/COM systems. Each provides VHF communication and SBAS/ LPV precision navigation and are designed to meet the accuracy and integrity requirements for ADS-B as part of the NextGen airspace initiative. As plug-and play replacements for legacy systems, the IFD440 shares the same basic functionality in large and compact display formats.
When it comes to panel-mounted avionics, you now have a choice and the choice is easy. Avidyne.
Hybrid Touch: Knobs & Buttons or Touch-Screen
Our award-winning Page & Tab user interface allows you to go to any page in the system with only one or two clicks.
In addition to the dedicated knobs and buttons that many pilots prefer for frequent pilot actions, the IFD440’s Hybrid Touch capability allows pilots to perform virtually all of those same functions via the touch-screen interface, as well as providing additional MultiTouch functionality like pinch-zoom, map panning, and graphical flight plan editing, allowing the pilot to decide to use the MultiTouch screen, or knobs and buttons depending on the pilot’s phase of flight.
Avidyne’s unique Hybrid Touch user interface eliminates nested menus and allows pilots to view any page with only one or two clicks.
Made by Pilots for Pilots
The IFD440 was designed for ease of use, especially during single-pilot IFR operations. As avid and enthusiastic pilots, we at Avidyne understand the importance of workload reduction and simplicity of operation.
The IFD440 provide an easy page & tab user interface, plus advanced radio management including automated NAV frequency tuning and COM frequency nomination, automatic frequency identification, easy-to-modify graphical flight planning, and Avidyne’s exclusive GeoFill™ waypoint nomination.
Specifications
Display
4.8” Diagonal w/Touch Screen
Full VGA - 640 x 235 pixels
65,535 colors
Ultrabright sunlight readable w/LED Backlighting
Dimensions
Width: 6.30" (16.0cm)
Height: 2.66“ (6.73cm)
Depth: 11.00“(27.5cm) behind panel including connectors
Weight
6.6 lbs (3.79kg) including tray & connector
VHF COM Power Output
10 Watts nominal
Optional 16Watt (for 28vdc installations only)
Power Requirements
11 - 33VDC
4.4A/6.5A Xmit @14vdc
2.2A/4.0A Xmit @28vdc
Environmental
DO 160E
To 50,000 ft.
-20C to +55C Operating
+70C Short Term
Functionality
Satellite Datalink Weather Interface
Avidyne MLB700/WSI AV-300 Broadcast Datalink Receiver
– Using WSI InFlight® Aviation Weather & SIRIUS® Satellite Radio
Garmin GDL69/A Broadcast Datalink Receiver
– Using Baron Services Weather & XM Satellite Radio
Heads Up Technologies XMD-076/A Broadcast Datalink Receiver
– Using Baron Services Weather and XM Satellite Radio
Electronic Approach Charts & Airport Diagrams
CMax™ – Jeppesen Electronic Airway Manual Charts
Lightning Interface
Avidyne TWX670 Tactical Lightning Detection
L3 WX-500 Stormscope® Weather Mapping Sensor
Traffic Interface
Avidyne TAS600/605/610/615/620/A TAS
Ryan 9900B/BX TAS
Honeywell KTA870/KMH880 TAS/IHAS
L3 Skywatch 497 / HP TAS
Garmin GTS800/820 TAS
Honeywell CAS66A TCAS I
L3 791 TCAS I
Garmin GTS850 TCAS I
ADS-B Interface
Avidyne TAS605A/TAS615A/ TAS620A (Traffic)
Charts, Nav Data, and other software updates are easily field loadable via USB.
