ELECTRONICS INTERNATIONAL
MVP-50T Turboprop Packages
Part No: MVP-50T-PT6-C
DESCRIPTION
MVP-50T Turboprop Packages

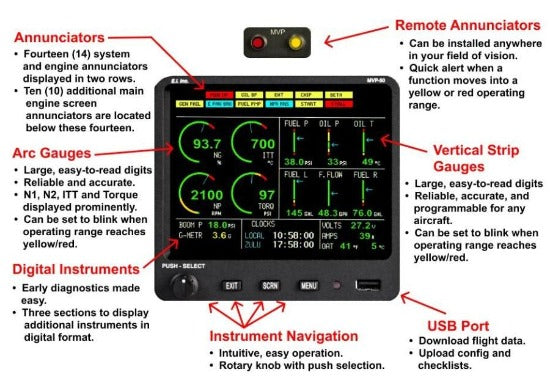

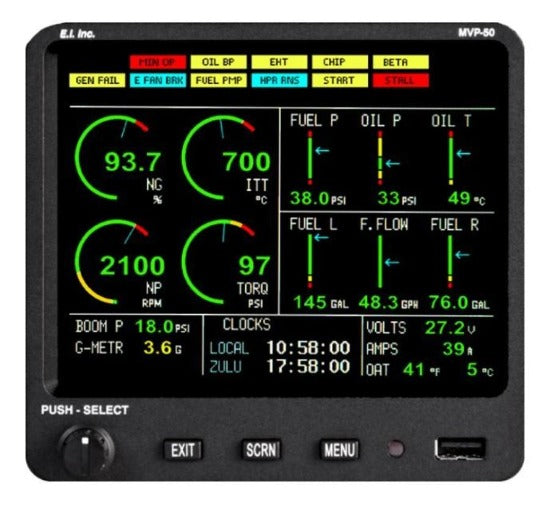

The MVP-50T has redefined what a Turboprop engine analyzer should be. This premiere engine monitoring dynamo includes accurate, programmable monitoring for all major Turboprop functions, including N1, N2, ITT, Torque, Oil Pressure, Oil Temperature, Volts, Amps, Fuel Level, Fuel Flow, Time to Empty, and many other critical functions.
FAA Approved Primary Replacement
- The MVP-50T allows you to remove old engine instruments: NG, NP, ITT, Torque, Fuel Level, Oil Pressure and many more.
- Engine Data Converter (EDC) accepts all inputs from probes & transducers. Only 2 wires run from the EDC to the back of the MVP-50T.
Clean Installation
- The MVP-50T mounts flush with the panel creating a clean panel look and feel.
- An Engine Data Converter (EDC) accepts all inputs. Only 2 wires run to the back of the instrument.
Accurate, Dependable & Easy to Use
- Electronics International consistently has been a leader in digital engine instrumentation since 1979.
- Designed and built in the USA.
Data Recording of Every Flight
- All monitored functions are stored up to three times per second.
- Up to 1,500 most recent flights stored, downloaded via USB
|

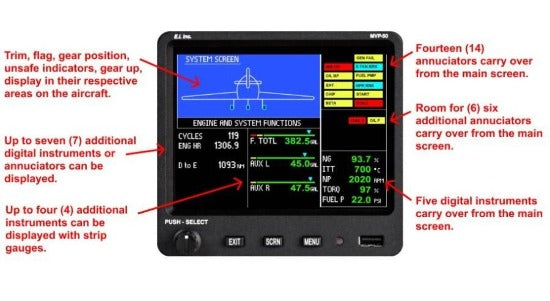

Note: Redline Worksheet in "Documents" tab must be filled out and submitted on every order. Replaces 15 engine gauges and 50 functions. Remarkable full-color, enhanced TFT Glass Display (excellent viewability, even in direct sunlight) Pilot- Programmable Colors, Range Markings, Limits and Voice Alarms (for each parameter monitored) “System Page” to display Trims, Flaps, Wheel Status Lights, and many other system parameters and annunciators. 27 Pilot-Customized Annunciators at the top of the “Main Page”. Fuel Management, Timers, Clocks, Date, Weight & Balance. Data Recording (.33 – 6 min, 665 hours @ 6 seconds). Pilot-Customized Checklists and Flight Plans. General Info, Flight Log, Start Log, Max & Min Data. Pilot easily can generate Custom Screens and download them to the MVP-50P through the USB port. Help Screen, GPS Interface and Data, Fuel Efficiency, Fuel Used for the Trip, Fuel Used Since Fill Up, Time to Empty, Distance to Empty, Fuel to Way Point, Time to Way Point, Distance to Way Point, Fuel Reserve, Time Reserve, Distance Reserve, Up Timer, Down Timer, Flight Timer, Engine Hours, Cycles, Date, Local and Zulu Time. Other functions, such as Fuel Level, Gyro Vac, Hydraulic Pressure, etc., may be added by purchasing an appropriate probe & harness, or transducer, etc. Using your current Resistive Fuel probes require our FFLM-4-XX to interface with the MVP-50T System. Torque, Oil Pressure & Temperature, Fuel Flow & Pressure, OAT, Amps, Volts, Multiple Fuel Screens, Pre-wired Harness, N1 and N2 hookups. Includes EDC (Engine Data Converter), cables and harnesses, transducers, shunt (for amps), USB Download/ Upload Memory Stick, and our AV-17CP (Voice Warning Control Panel). Only 5.55”x 5.15”x 2.4” deep. |
Features

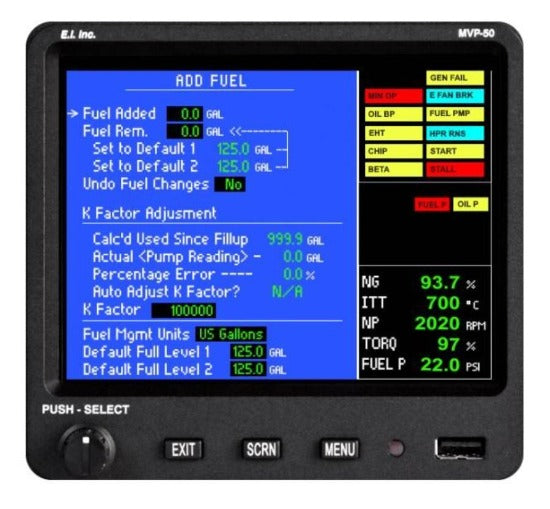

Add Fuel
- Simplify fuel fill-ups by setting default full levels
- Adjust K Factor

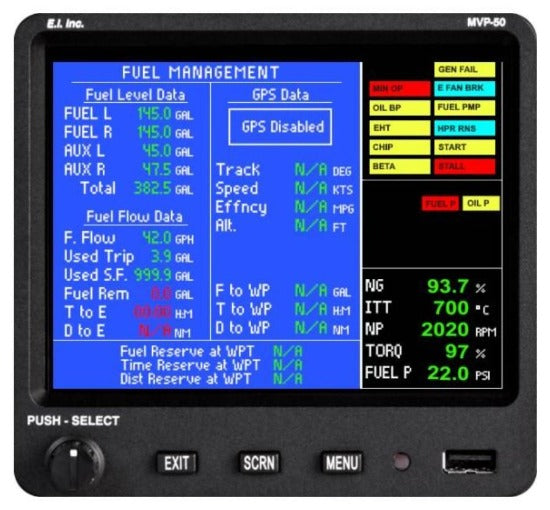

Fuel Management
- Fuel Level Data displays fuel level in each of the tanks
- Fuel Flow Data is calibrated with the K Factor
- GPS syncing assists with fuel remaining until next waypoint
- Fuel reserve information assists the pilot with calculating critical fuel levels

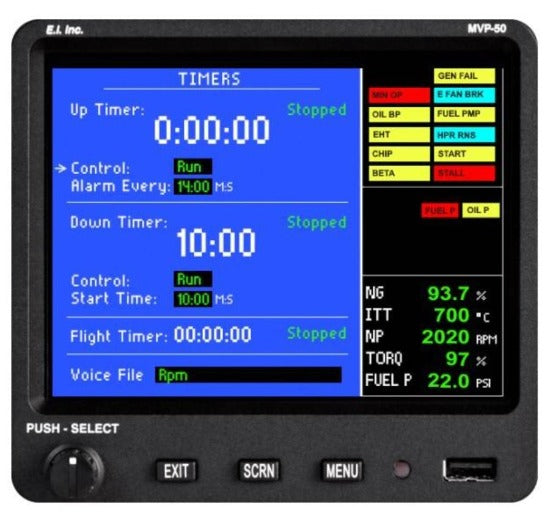

Timers
- Features up, down, and flight timers with built-in alarm capability

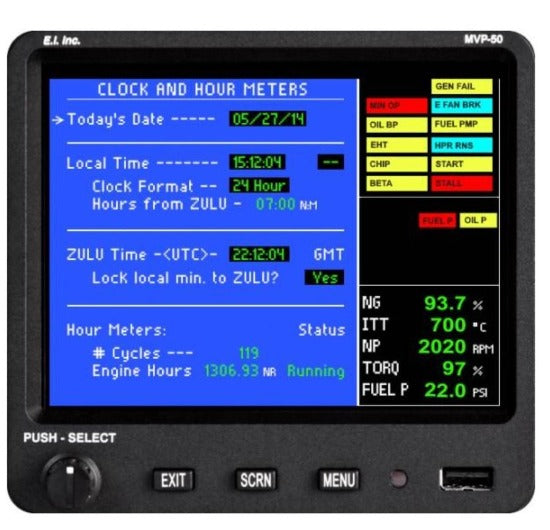

Clock and Hour Meters
- Displays the current date, local time, zulu time, tach time, and engine hours

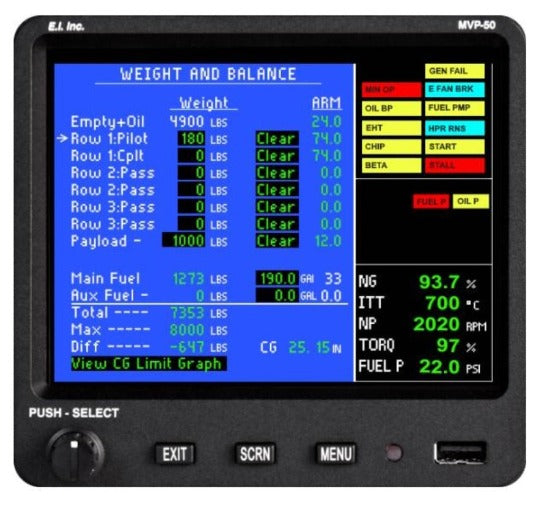

Weight and Balance
- Assists pilots with performing the weight and balance calculation for the aircraft

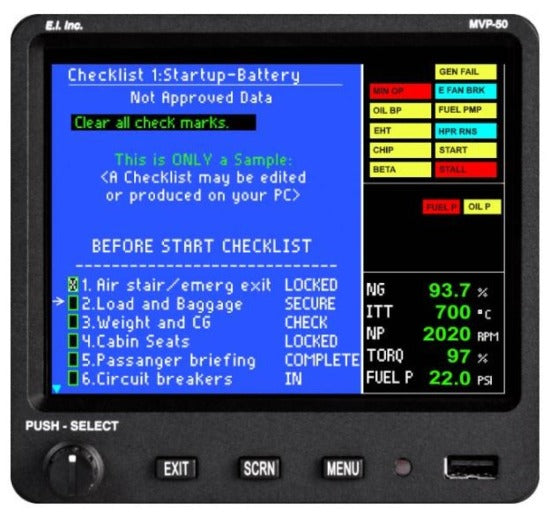

Checklists
- Create checklists for any procedure, such as takeoffs, landings, and emergencies
- Store up to 100 unique, programmable checklists
Data Logs
- Flight Log – Records the date, start time, flight number, and flight time for each flight
- Max Log – Records maximum values reached for a pre-set number of functions during the flight, storing up to 500 flights
- Min Log – Records the minimum values for a pre-set number of functions
- Start Log – Records each engine start, the date, flight number, minimum bus voltage, start time
Gen Info and Flight Notes
- Create and store up to 50 custom flight plans and 50 general information screens
- Each flight plan may include distances, fuel requirements, estimated flight times
- General information notes may include items to remember such as VFR weather minimums or general airport guidelines
Specifications
Dimensions
5.55″ W x 5.15″ H x 2.4″ D, Flush Mount
Weight
1.9 Pounds (Instrument Only)
Power Requirements
7.5 to 30 Volts
Typical: 0.2 amps @ 12 Volts, 0.1 amps @ 24 Volts
Display
Active Matrix, Sunlight Readable
Backlight
Fully Dimmable for Night Flights
USB Port
Data Download and Software Updates
Internal Storage
Up to 1,500 most recent flights stored. All monitored functions are stored up to three times per second. Recorded flight data can be easily downloaded via USB port.
Certifications
- FAA STC’d as Primary Replacement
- FAA TSO’d to DO-160G
- FAA DO-178 Level C
- Transport Canada Civil Aviation (TCCA) Validated STC
- European Aviation Safety Agency (EASA) Validated STC
Layout
All MVP orders are laid out by Electronics International’s FAA DER.
