Stratus A&P Bundle W/ Stratus ES

Stratus A&P Bundle W/ Stratus ES

Note: The Stratus A&P bundle includes a wiring harness and can be purchased over the counter for installation by an A&P.

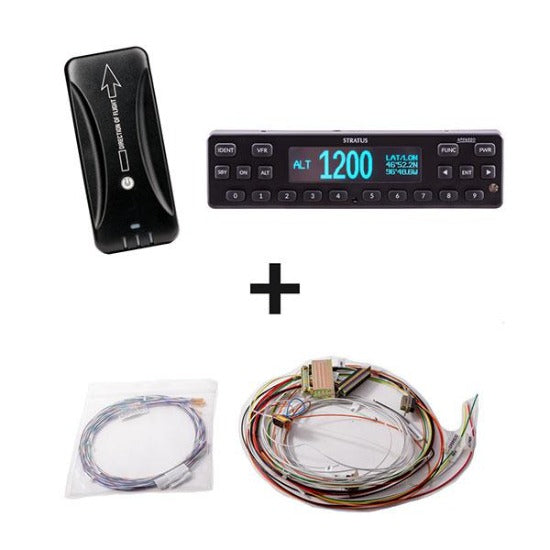

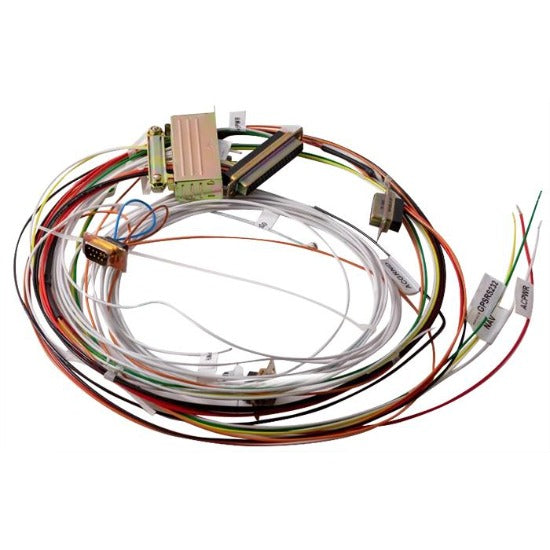

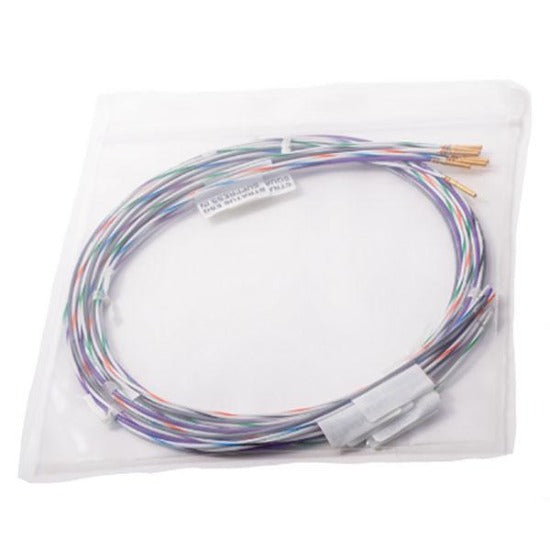

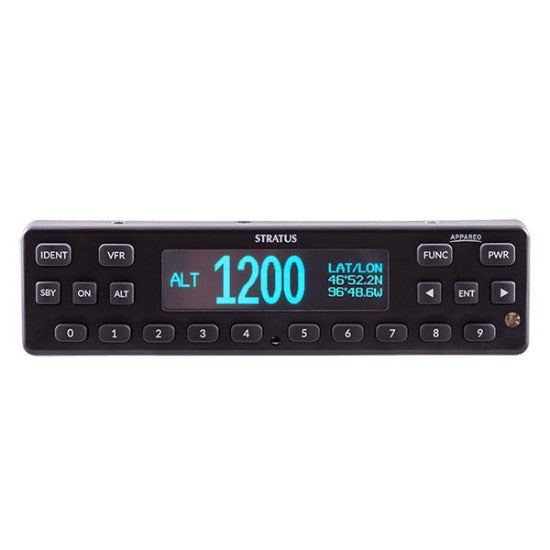

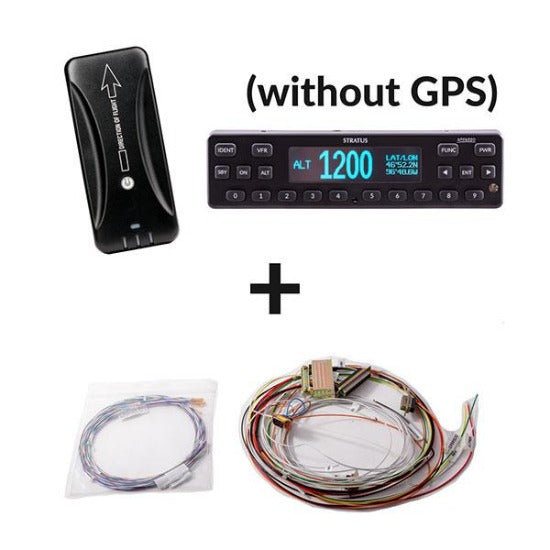

The Stratus A&P bundle includes: Stratus ES Kit, Stratus 3i Kit, and Wiring Harness.

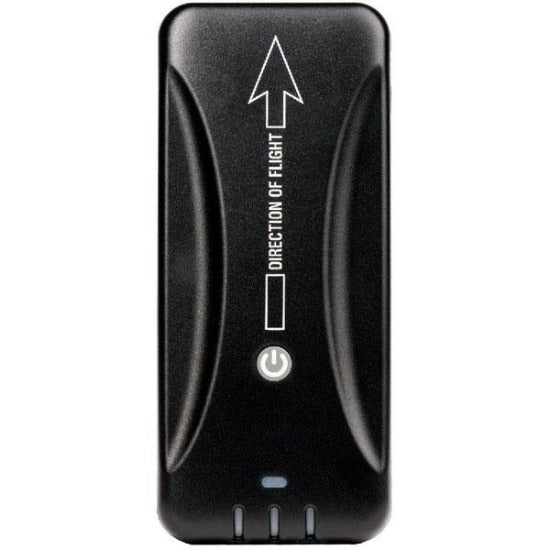

ALREADY HAVE A STRATUS RECEIVER?

Connect your Stratus with the optional interface kit for maximum reception. Your portable Stratus receives not only auxiliary power, but also its ADS-B and GPS signal from the transponder’s externally-mounted antennas.

• 1090ES (Mode S extended squitter)

• Built-in WAAS GPS

• Meets global mandates for ADS-B Out

• Push-button operation

• Easy-to-use interface

• Pressure altitude monitor

• Bezel Height: 1.69 in. (43 mm)

• Bezel Width: 6.38 in. (162 mm)

• Depth: 10.75 in. (273 mm) front of panel to connector backshell

• Weight: 3.29 lbs. (1.49 kg) including rack and connectors

• Operating Temperature: -20°C to 55°C

• Storage Temperature: -55°C to 85°C

• Power Input: 9.0 to 36.0 VDC, 15 W typical

• Cooling Input: No fan required

• Environmental Compliance: DO-160G

• Software Compliance: DO-178B Level C

• Hardware Compliance: DO-254 Level C

• Display: OLED

• Transmitter Power: 310 W

APPAREO STRATUS POWER PRO BOGO

October 1, 2023 through October 31, 2023

Click Here for More Information

Buy a Stratus Transponder, get a Stratus Power Pro for FREE!

During the month of October, purchase a Stratus Transponder and get a Stratus Power Pro for FREE.

Our transponders were designed to be some of the most cost-effective, easily installed certified avionics available for general aviation.
